Fuel Line Placement

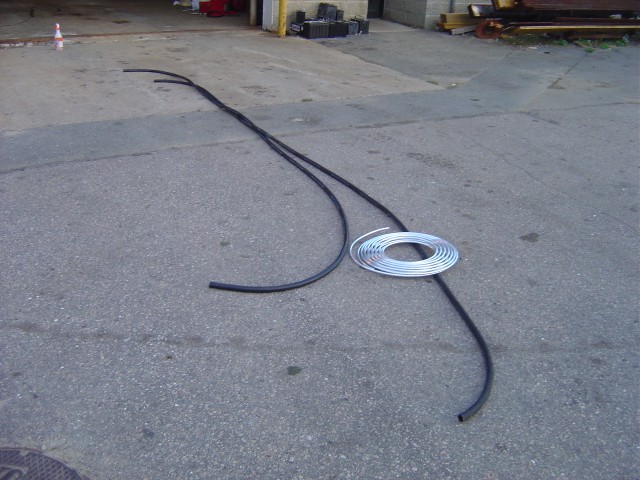

Here is the heater hose and aluminum lines ready for lovin!

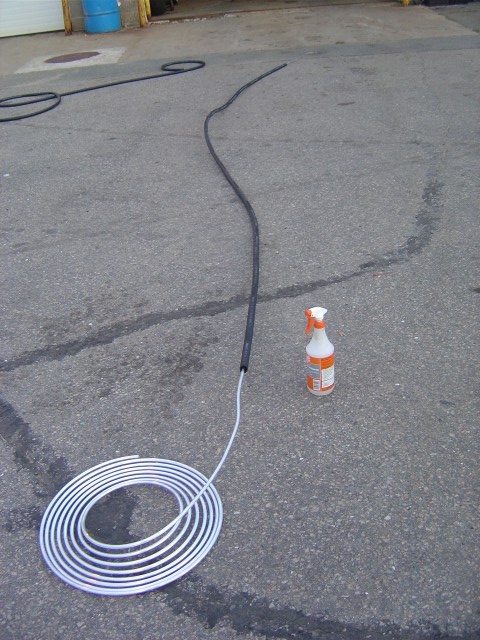

Frybrid's suggestion of using a spray bottle of soapy water to lubricate
the tubing for its long journey was priceless.

It would have SUCKED not to have done this!

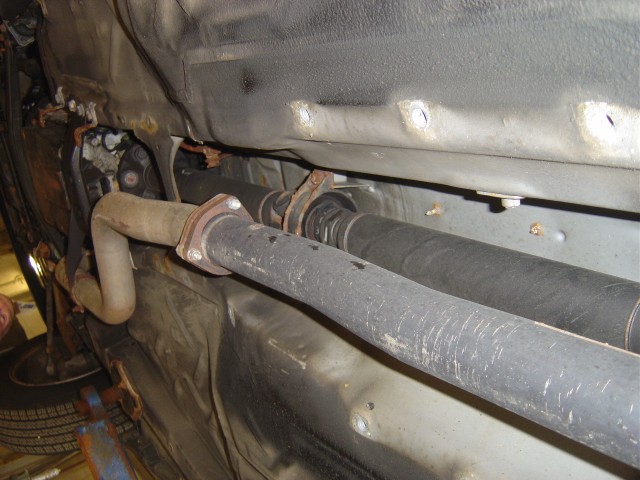

I took off the heat shield to reveal some protected space along side the drive shaft.

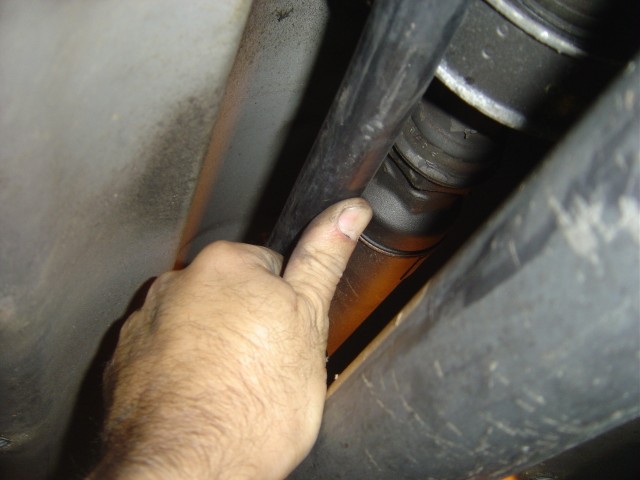

See the pretty drive shaft? I will mount the lines up there, out of the way from the nasty road.

I sure hope both send and return lines will fit!

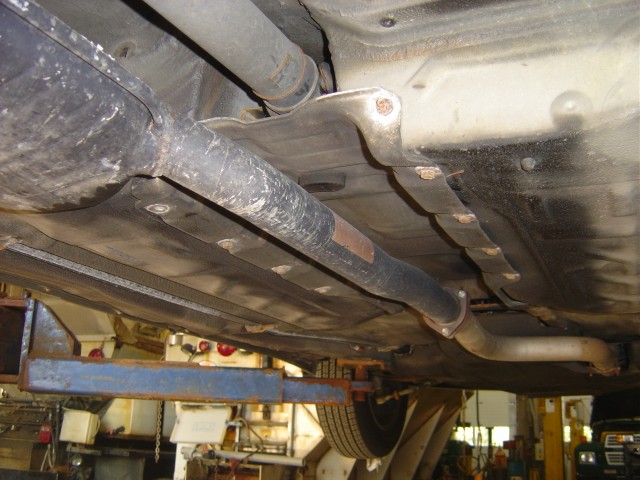

The heat shield before removal

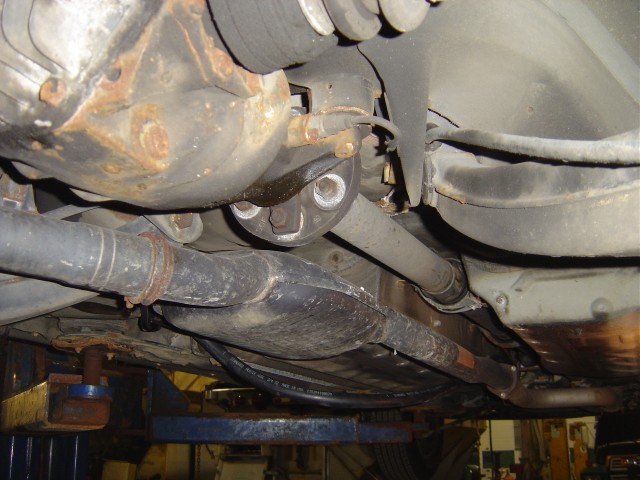

Don't forget to run a wire for the fuel tank sender! I did, and had to put the car back on the
lift a second time!

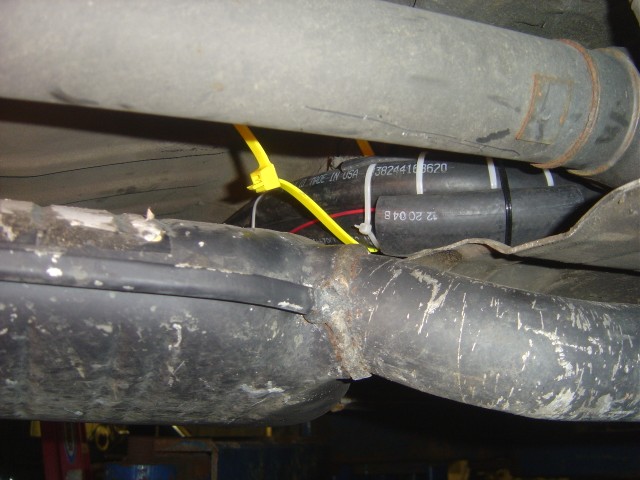

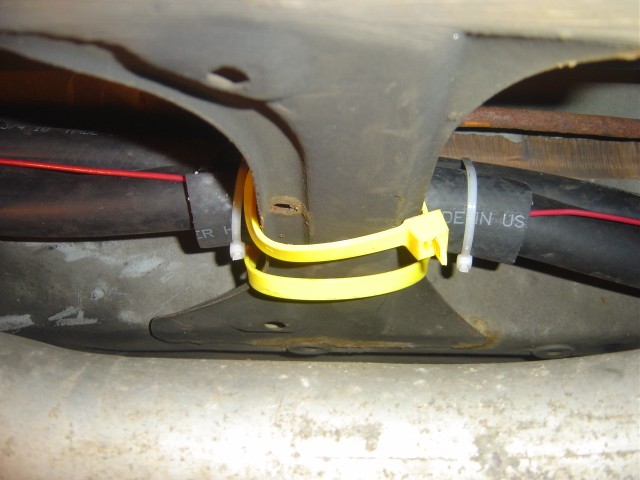

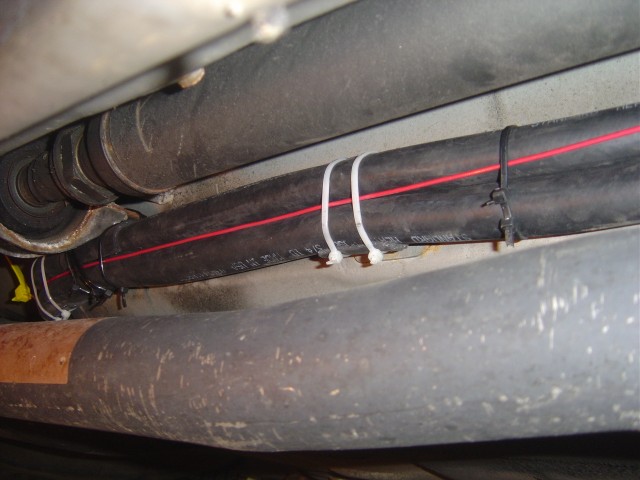

note the anti chaffing effect of the extra hose, and the heavy duty nylon strapping

I hope this will hold!
