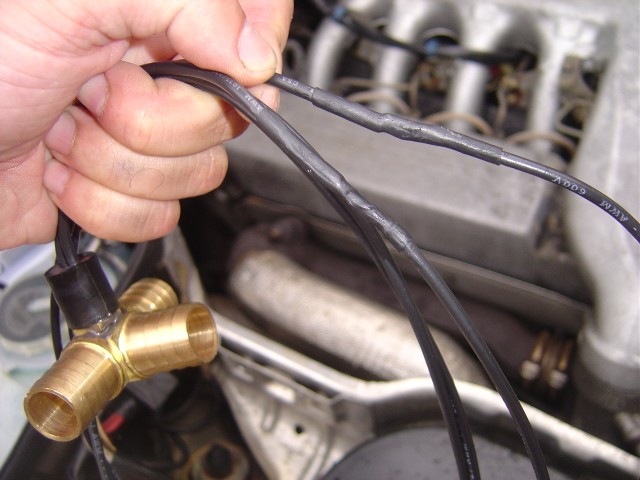

Here is my ill fated thermo switch, soldered to some longer wire BEFORE I plumbed it!

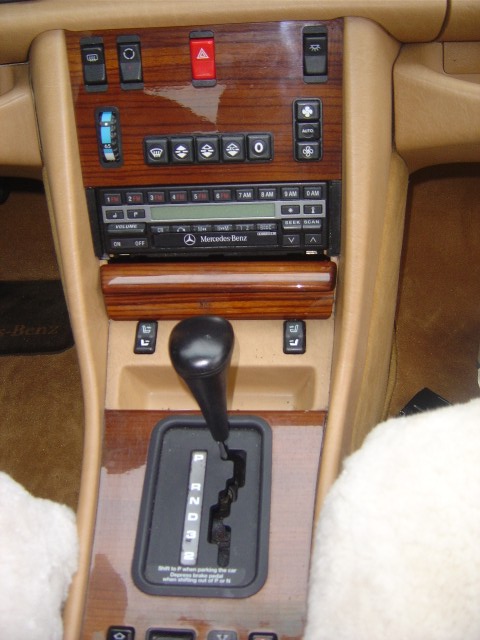

Ahh, the virgin dash

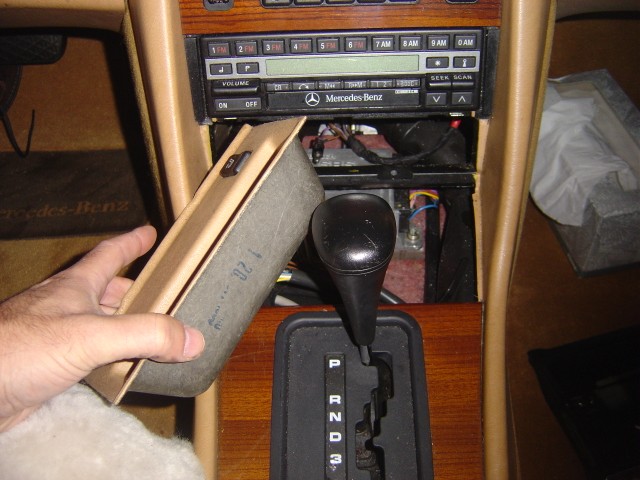

Make me some holes!

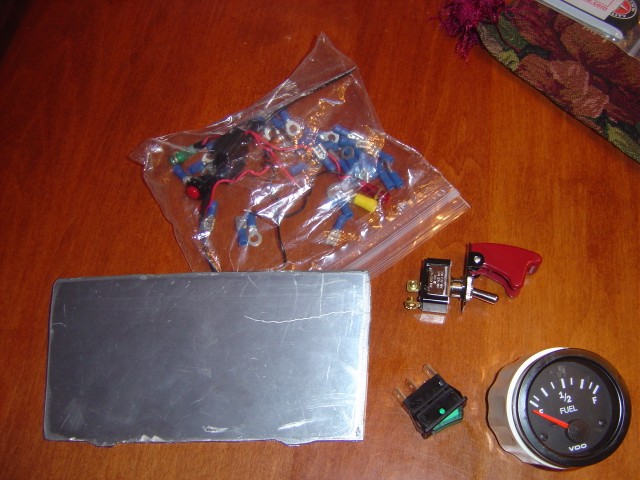

Here are some raw parts ready for panel loving!  I bought a metal plate, and some cool switches

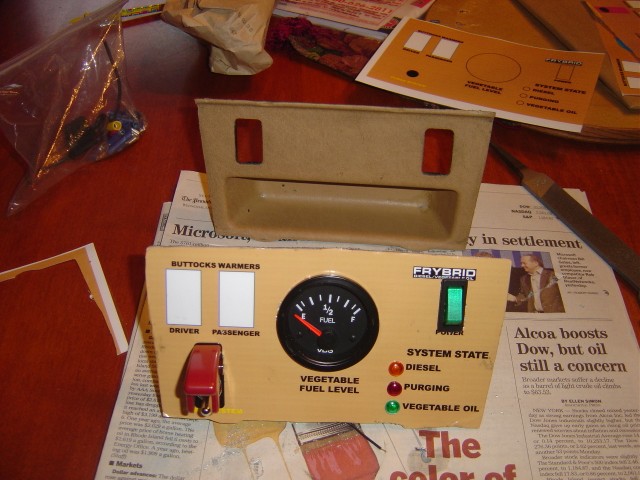

Here is my first draft of the control panel

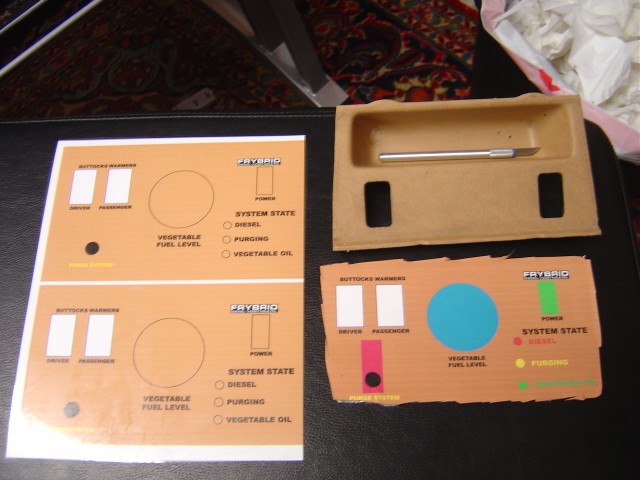

Some experimenting.  I used my ink jet printer to make the faux wood and all pringing!

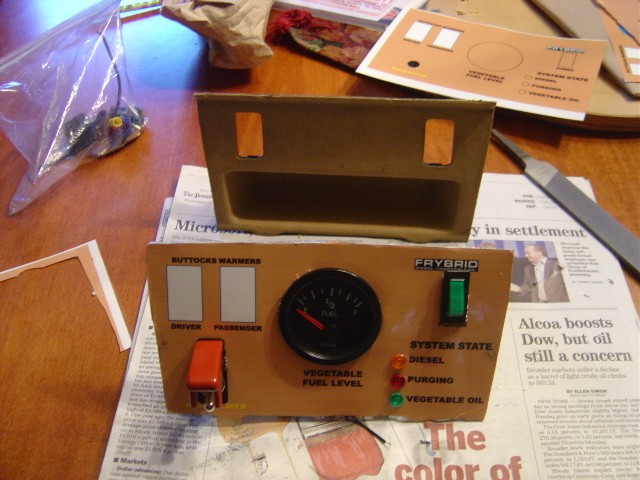

This one looks pretty bad!

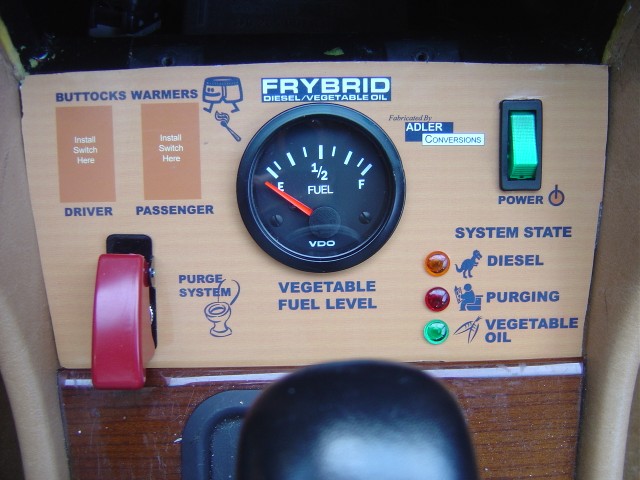

Here is the finished one before I reinstalled the ashtray.  I am especially fond of the Purging Icons!
Note: I went with Orange for diesel and Red for purging, since I thought these were more appropriate
than  the opposite.
